Scarab 22 folding trimaran

See build pictures of this design.

The Scarab 22 was developed from the 670 but is quite different. It is slightly bigger all round and wider in the stern sections. The float construction and beam supports are different from the 670 and there are no centreboards in the floats, the board is housed in the starboard settee riser. There is more room inside and has a larger cockpit with accomodation for 4.

This boat was built by Olivier Blanc in Canada using foam composite and epoxy resin.
See more details of this boat build on Olivier's web site.

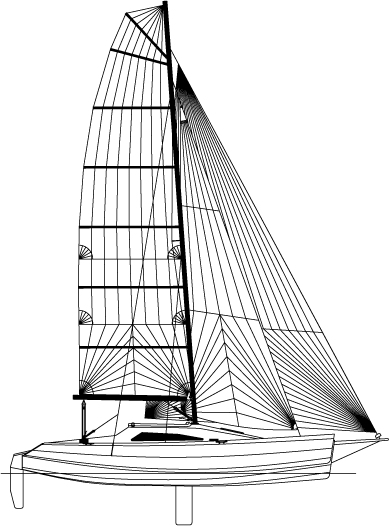

Scarab 22

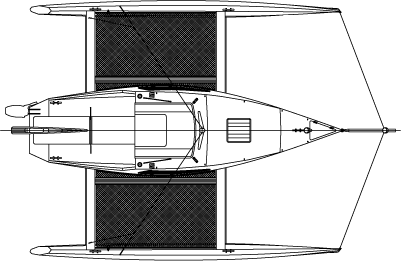

Scarab 22

Scarab 22

Scarab 22

Scarab 22 built by Peter in Brisbane
Scarab 22

Scarab 22

Scarab 22

Scarab 22

Scarab 22 built by Ray Kendrick

Scarab 22

The boats above were built in foam composite and epoxy (Ray's) and plywood composite and epoxy (Peter's). Although the boat is the same length as the Scarab 670 it has more room inside, larger cockpit, and is easier to build. There is no building frame for the floats.
The float construction has been modified to speed up the building process, the beam folding arms are now connected to a support beam which is made from plywood and triaxial fibreglass instead of a fabricated aluminium ring frame.

Approximate cost to build in Australia up to painting stage is $15,000 AUD (Klegecell foam composite) and $12,000 AUD (plywood composite panels) if you make your own panels.

Scarab 22

Scarab 22

Scarab 22

Scarab 22

Length Overall......................................... 6.775m (22' 4.5")
Beam Overall........................................... 5.63m (18'5.5")
Beam folded............................................ 2.5m (8' 2.5")
Draft board up........................................ 275mm (0' 11")
Draft board down.................................... 1.215m (4' 0")
Displacement to DWL.............................. 900kg (1980#)
Weight foam.......................................... 420Kg (924#)
Weight plywood...................................... 540Kg (1188#)
Main sail................................................. 16.1 sq m (174 sq ft)
Jib......................................................... 8.7 sq m (94 sq ft)
No.1 headsail.......................................... 8.74 sq m (94 sq ft)
No.2 headsail.......................................... 19.4 sq m (210sq ft)
Auxilliary................................................ 4 hp long shaft OB

Buying plans

Study Plans: sent in PDF format within 24 hours. Study plans are provided to show a dimensioned general layout and sail plan, accomodation and a basic material list. Some other details may also be included. The boat cannot be built from the study plans but are provided for information and basic pricing.

Plans: the full plan set is required if the you want to build this boat. It contains all the information and dimensions required. The plans are presented in PDF format. These can be printed on your home printer on A4 size paper or sent to a photo copier to enlarge to A3 size. Plans consist of 61 drawings in PDF format emailed within 24 hours.

Full size paper templates: these are provided as PDF files that may be printed by a Plan printing Business. The plan printer must have a "continuous roll A0 plotter". The full size templates are only required if desired, all the dimensions required to build are included in the full plan set.

Study plans $15 AUD
Full plan set $150 AUD
Full size paper templates $60 AUD

* If your emailed order has not arrived within 24 hours check your spam box. If it is not there contact us
