Scarab 16 folding trimaran
Scarab 16

A 4.9 m folding trimaran for minimalist cruising

LOA: 4.89m (16' 0 ")
Beam open: 3.435 m (11' 3")
Beam folded: 2.375 m (7' 10")

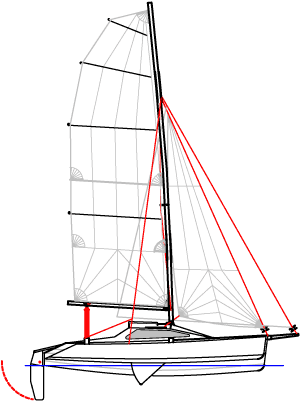

Sail area:

  • Main: 11.5sq m (124 sq ft)
  • Jib: 4.4 sq m (47.5 sq ft)
  • Screecher: 9 sq m (97 sq ft)
  • Construction: 6mm marine plywood - stitch and tape or fibreglass foam sandwich. Weight: 180 Kg approx
Scarab 16
The Avalon 9.0 is a big trailable yacht. It is a development of the earlier designed 8.2. The accommodation is similiar to the 8.2 with more space in the main cabin and space for a marine toilet curtained off. Forward is a double berth with stowage under, in the main cabin to starboard is a single berth with a settee below, navigation area with ice box under and shelves above, to port is a settee with stowage bins above, galley area with sink and stove and stowage under. under the cockpit is a large single berth or stowage area.
The berth under the cockpit is 2 metres (6'6") long, all others are longer. The cockpit will seat six but as on most trimarans the nets are a far more comfortable area on which to lounge around. Lockers under the seats are for life jackets, fenders, spare anchor etc.
Very, very economical folding system. 2 berth & space for cooking.
scarab 16
scarab 16

Study Plans $25 AUD
Full Plan price $645 AUD
